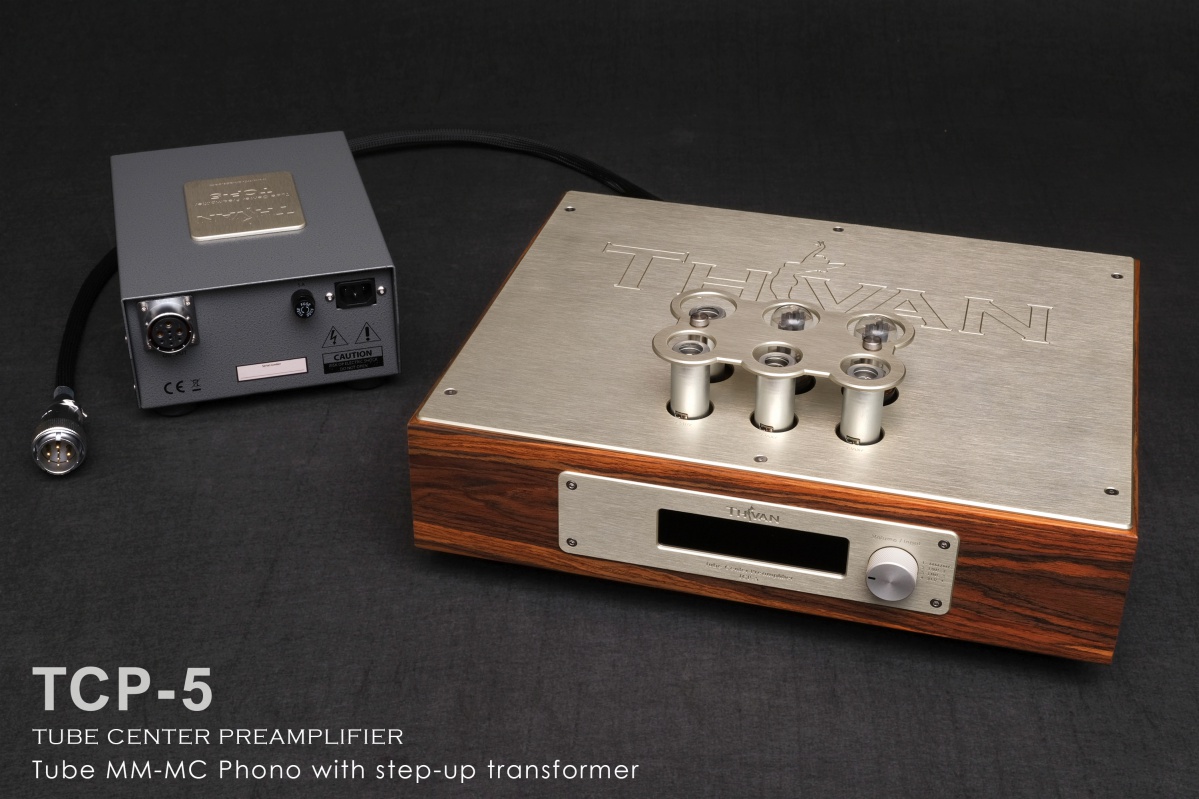

TCP-5 TUBE CENTER PREAMPLIFIER

SPECIFICATIONS
Inputs 2 RCA ;  1 XLR
1 MM RIAA Phono
1 MC Phono (MC Stepup transformer)
Outputs 1 RCA ; 1 XLR
Vacuum tube complement
        – Line Preamplifier 1 x 12AU7
2 x 6SN7 Single Ended with Special Output Transformers
        – MM Phono 2 x 6H2P (12AX7)
1 x 12AU7
Frequency response 6Hz – 30kHz (+/-3dB)
HUM Noise < 0.2 mV
Gain
        – Line Preamplifier 14dB
        – MM Phono 48dB
        – MC (Stepup transformer) 68dB
Max Voltage Output > 50Vp-p
Input Impedance
        – Line Preamplifier 100kOhms (Line in)
        – MM Phono Preamplifier 47k
        – MC Stepup transformer Low : 3 – 30 Ohms Cartrige
High : > 30 Ohms Cartrige
Power Requirements 230V (it is possible to set 100 / 117 / 240V / 50-60Hz by different markets)
Power Consumption 60W
Dimensions (W x D x H)
        – Amplification module 45 x 40 x 12.5 (cm)
        – Power Supply module 20.5 x 28 x 12 (cm)
Weight (kg)
        – Amplification module 17 kgs
        – Power Supply module 7 kgs
Display Yes
Remote control Included





introduce about the superiority of ThivanLabs’s Point-to-point method and engineering strengths in vacuum tube equipment
(click on to read and discover more)

INTRODUCTION & FEATURE

Tube Center Preamp with integrated MM/MC Phono stage is a masterpiece of ThivanLabs’s hand-crafted preamp series. It is a premium two-piece preamp developed for the best audio experience and flexible usability – main chassis and separate power supply – connected by a dedicated cable attached to the main chassis. The modularization of the phono amplifier and line amplifier section realizes advantages of both hand-wiring and shortest signal paths comparable to PCB.

The Tube Center Preamp TCP-5 offers an all-tube signal path from input to output, employing only dedicated Audio-Triodes and a power supply with a built-in isolation transformer. Magnetic flux leakage influence is eliminated by separated main and power supply chassis. Exclusive toroidal transformer is mounted in the power supply chassis, fully separated from unwanted interference. Furthermore, the low impedance power supply circuit consists of chokes and oil capacitors (PIO), making reproduction of good presence and sound texture possible.

It accepts 2 Phono (1 MM RIAA phono and 1 MC Phono with MC step up transformer) and 3 line level inputs (2 RCA and 1 XLR). Outputs are fully balanced on XLR or single ended on RCA. Almost every type of record pressings (vintage or most up-to-date, Mono or Stereo) can be compensated easily, rapidly and correctly. And the TCP-5 can be used with virtually any phonograph cartridge and is capable of driving nearly every tube- or transistor-power amplifier, for accurate, dynamic music reproduction. Thanks to point-to-point assembling, the TCP-5 provides long living products in superior quality, engineering and performance.

All this has been achieved by ThivanLabs’s many years of technical development heritage in superior quality, engineering and performance. It has been carefully optimized, through live concert experiences , in actual use, with professionalism and feedback from sound engineers, music lovers and other specialists.

Highlighted points of TCP-5

Features
  • The TCP-5 has all-tube audio circuitry and a solid-state power supply with a built-in isolation transformer.
  • Magnetic flux leakage influence is eliminated by separated main amplification module and power supply module.
  • Best selected component placement, wiring and ground paths made by high quality handcrafting.
  • Used all of ThivanLabs output transformers manufactured in-house – an excellent OPT technology researched and developed by ThivanLabs
  • Exclusive toroidal transformer is mounted in the power supply chassis, fully separated from unwanted interference.
  • Low impedance power supply circuit consist of chokes and oil capacitors (PIO), making reproduction of good presence and sound texture possible.
  • Resistors switch type attenuator is adopted for high sound quality.
  • Strong power supply section along with huge power capacitors – three 2.200uF Electrolytic capacitors and five PIO capacitors

Use
  • The TCP-5 offers both volume switch on the main module and remote control providing 128 volume steps with 0.5dB per step.
  • A switch is located at the front of the power supply module to select between two sound modes

Sound
  • The TCP-5 explicates the internal life of music such as the fine details, texture and micro shifts in volume that are often the hardest things to get right and capturing the essence of large-scale music, its rhythmic flow and grandeur. There is no spotlighting of detail, just a unified presentation in which the musical elements are all accounted for, not obscured or emphasized. Through the midrange, this preamp is beautifully balanced, the bass is supple and agile.

Value
  • It is a premium two-piece preamp developed for the best audio experience and flexible usability – main chassis and separate power supply – connected by a dedicated cable attached to the main chassis. The modularization of the phono amplifier and line amplifier section realizes advantages of both hand-wiring and shortest signal paths comparable to PCB.
  • Point-to-point assembling achieves the product a long-life durability
