| Music Streamer (MS) | |
| Software | Volumio |
| USB | 2 x USB 2.0 (Total max 100mA) |
| 2 x USB 3.0 (USB, HDD, SSD . . . Total max 500mA) | |
| LAN | Gigabit |
| Display | Oled Display |

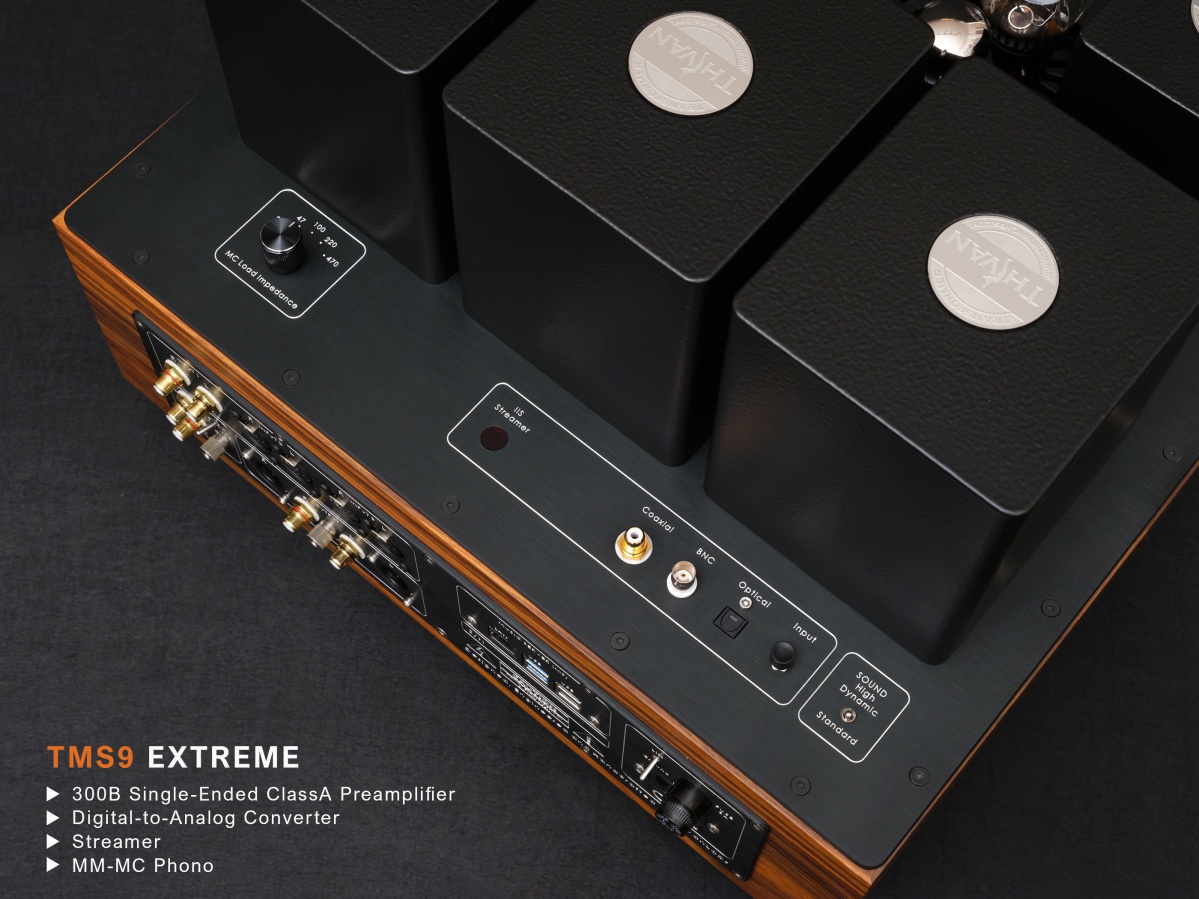

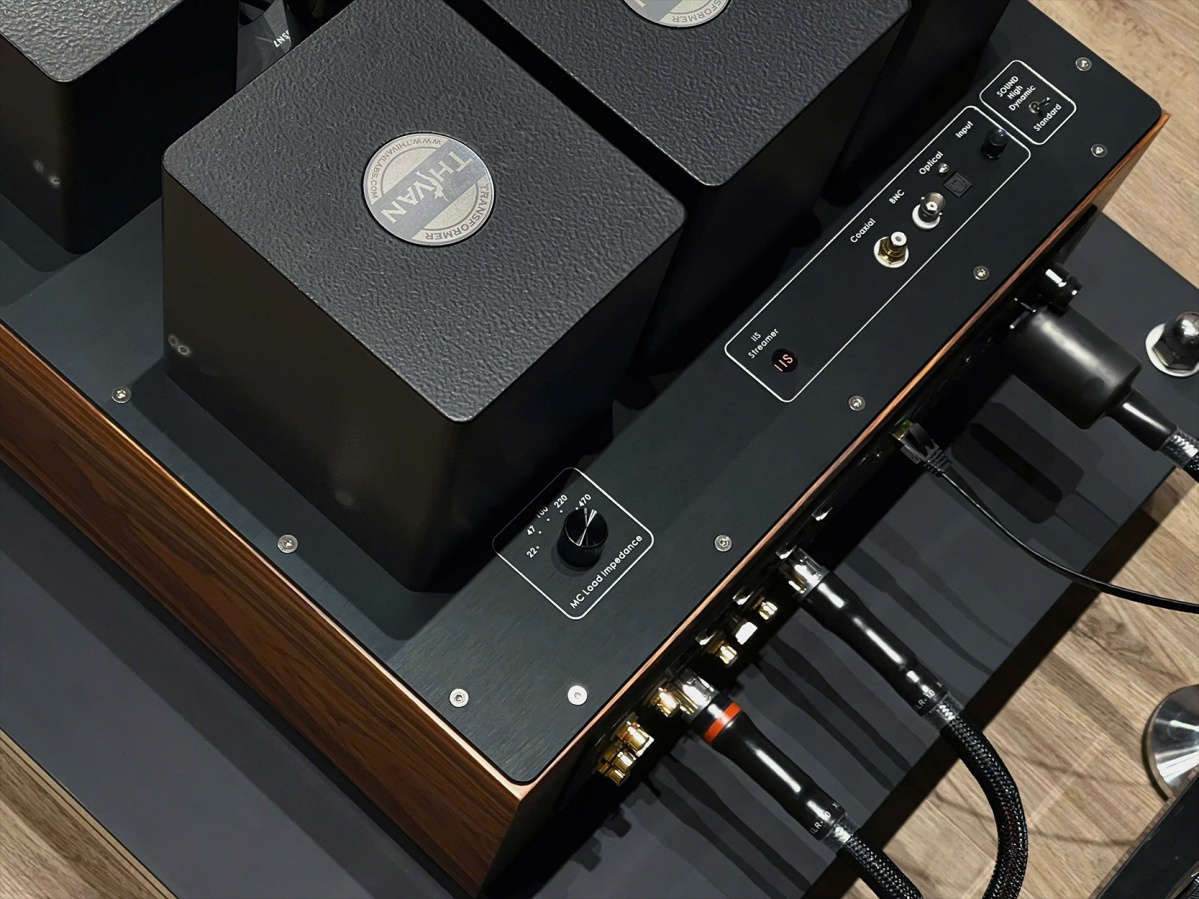

| DAC Inputs : 4 | OPTICAL -BNC – COAXIAL – MUSIC Streamer |
| Decoder | Audio Decoder by R-2R Module |

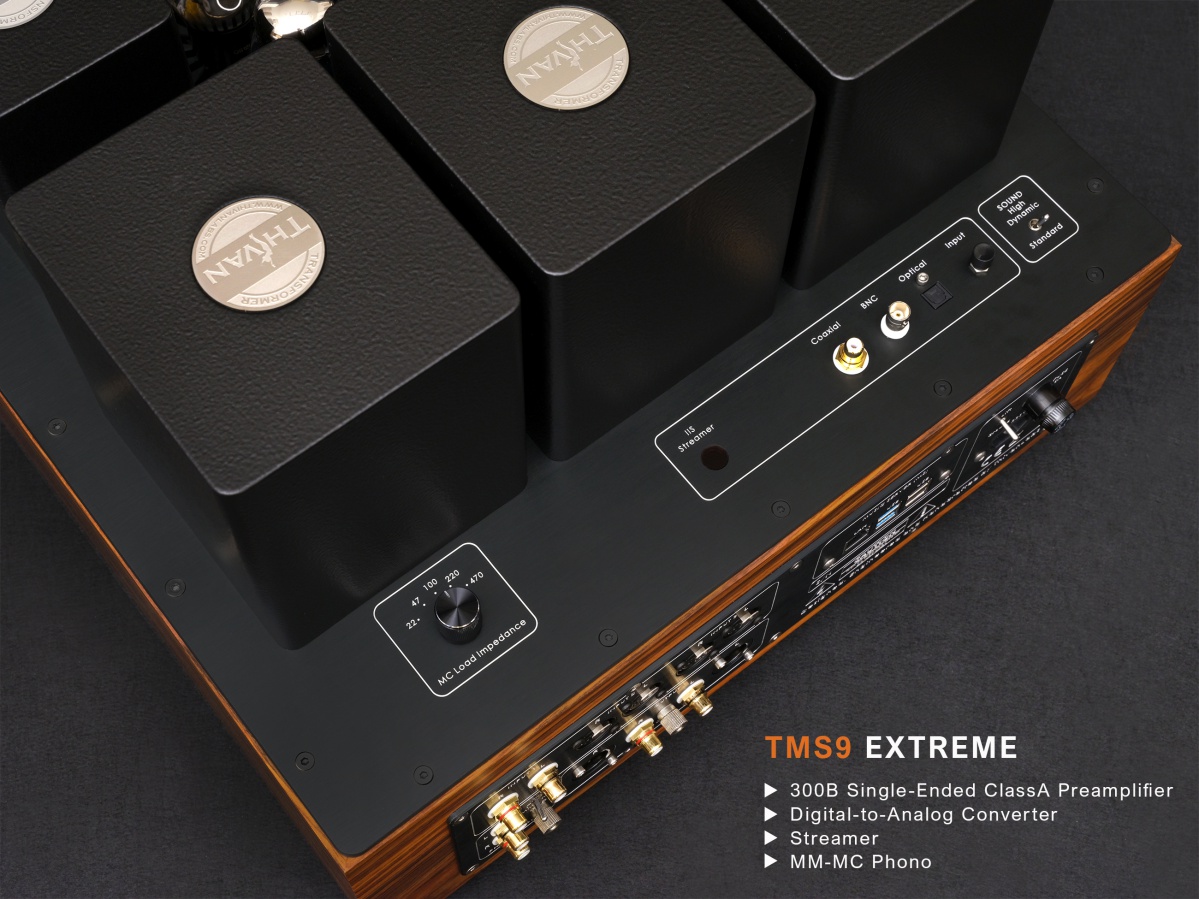

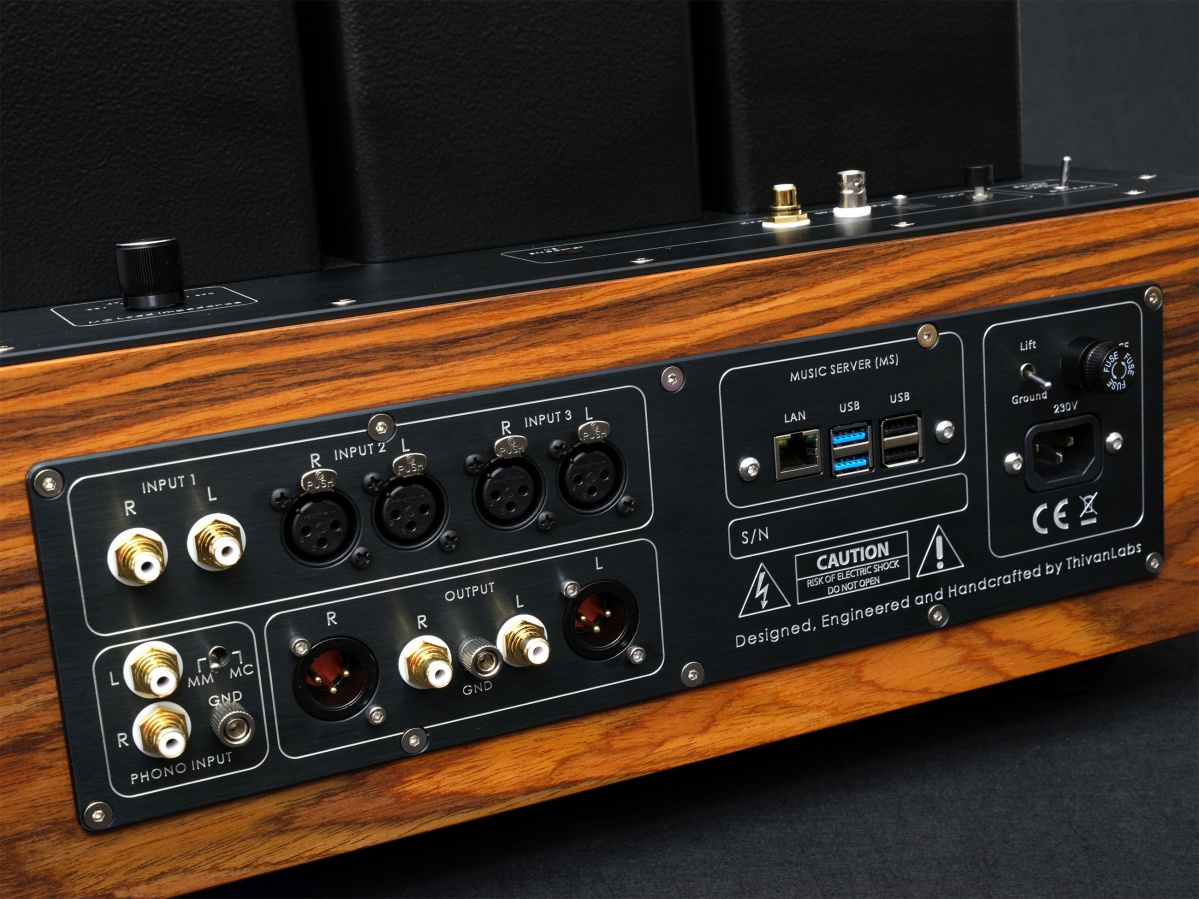

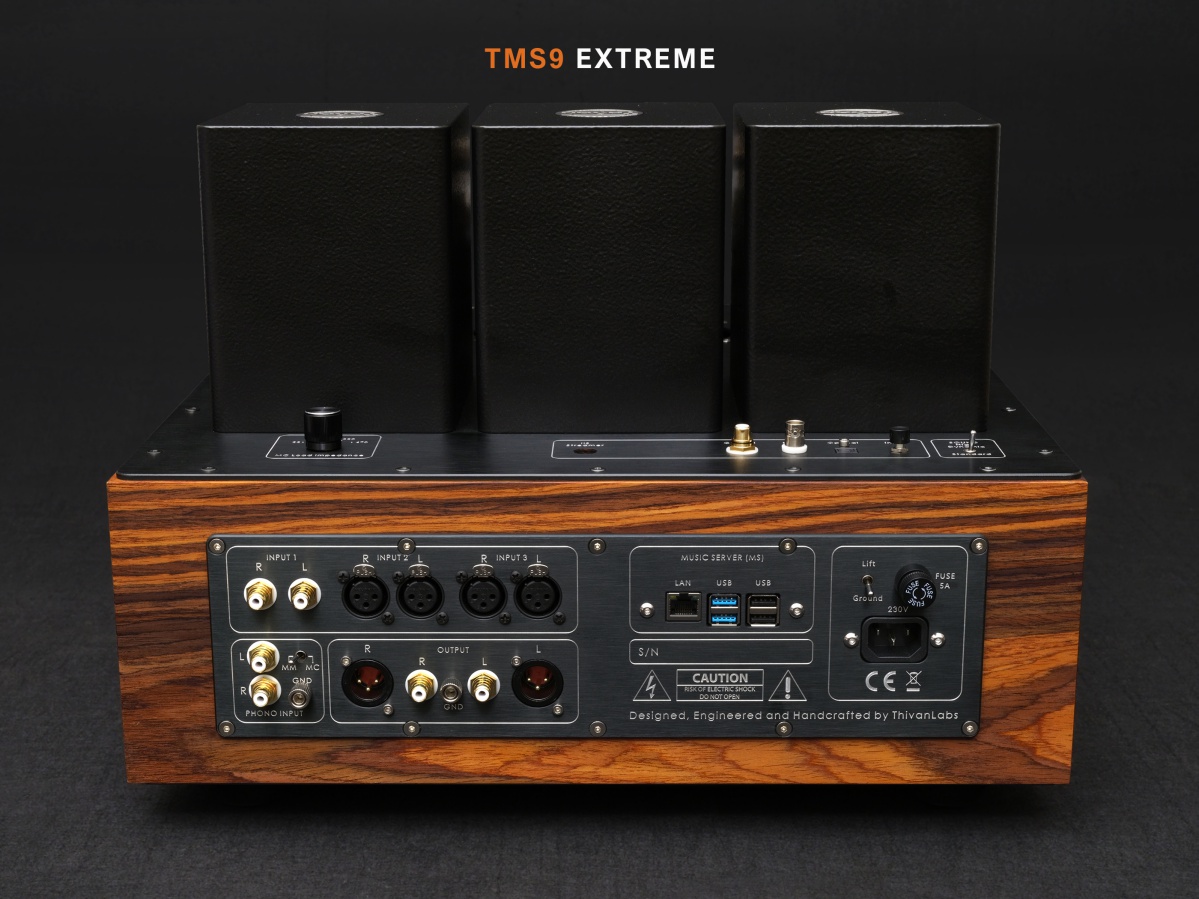

| Analog Inputs : 5 | 1 RCA ; 2 XLR ; 1 x DAC (MS-OPT-COAX-BNC) |
| 1 MM / MC RIAA Phono | |
| Analog Outputs : 2 | 1 Stereo Pair of RCA |
| 1 Stereo Pair of XLR | |
| Line Preamp | |
| Tubes | 2 x 6SN7 2 x 300B |
| Coupling | Single Ended Transformer |
| Gain | 10dB |
| HUM Noise | < 0.1 mV |
| Phono RIAA | MM : +40dB / 47k |
| MC : +60dB | |
| Frequency response | 10Hz – 30kHz (+/-0.2dB) |
| Power Requirements | 230V (possible to set 100 /110/115/240v/50-60Hz by different markets) |
| Power Consumption | 90W |
| Dimensions (W x D x H) | 45 x 50 x 33 (cm) |
| Weight | 48kgs |
| Remote control | Included |
TMS-9 EXTREME
SPECIFICATIONS
INTRODUCTION & FEATURE

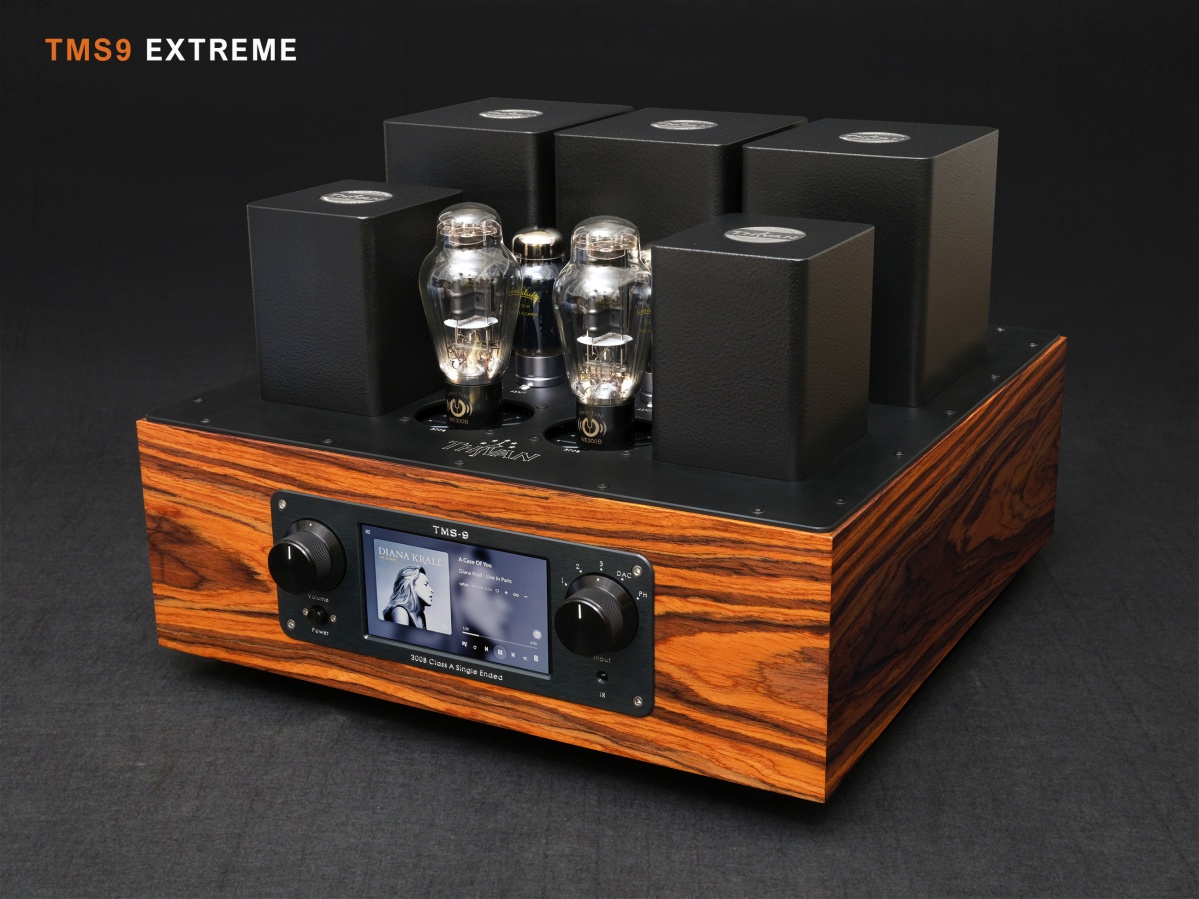

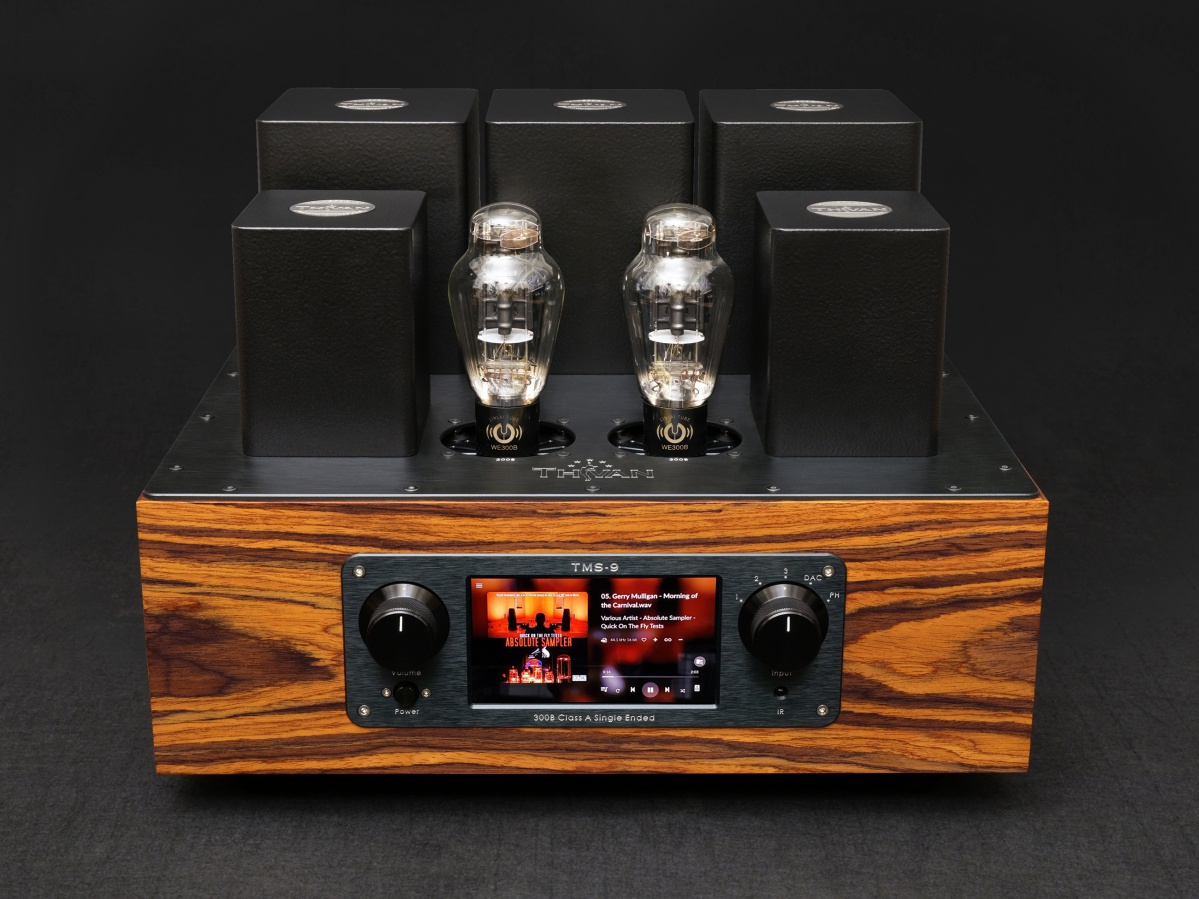

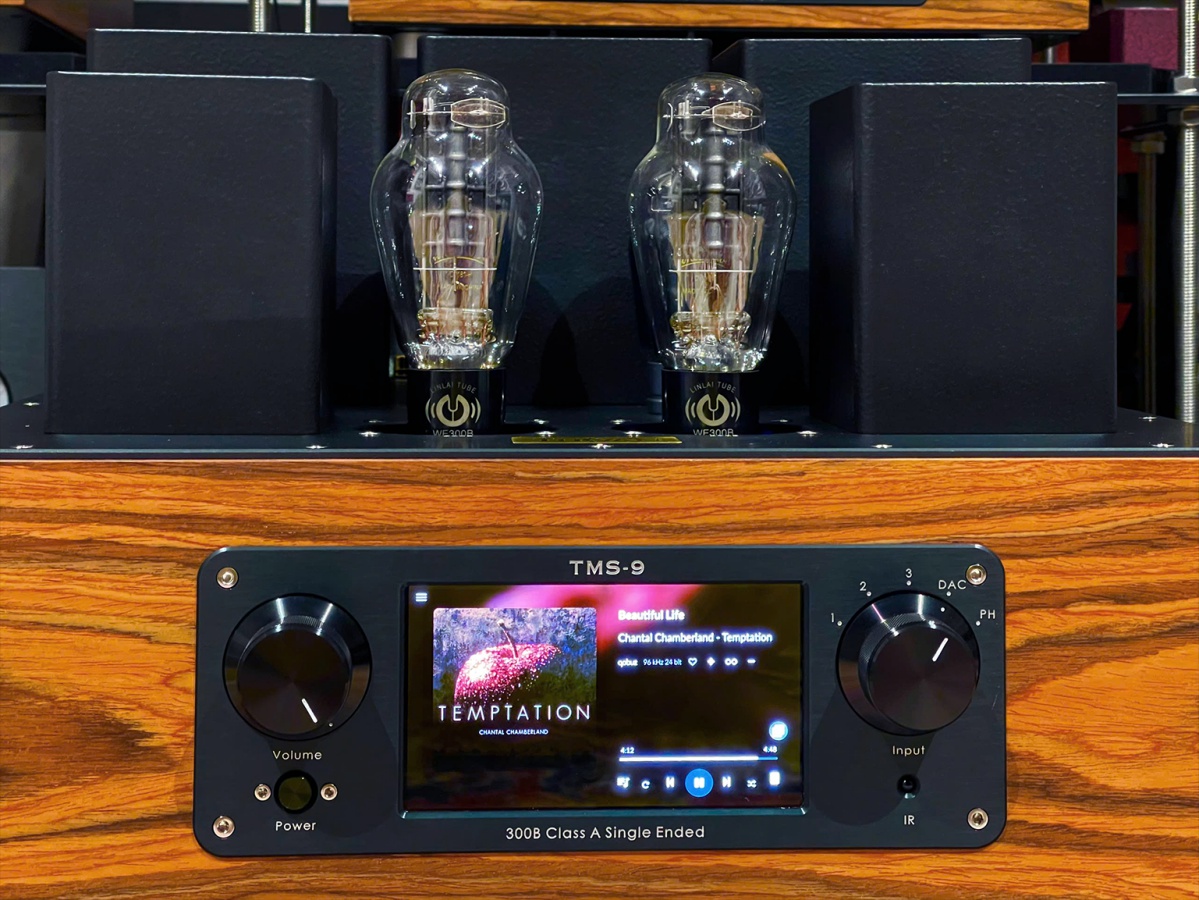

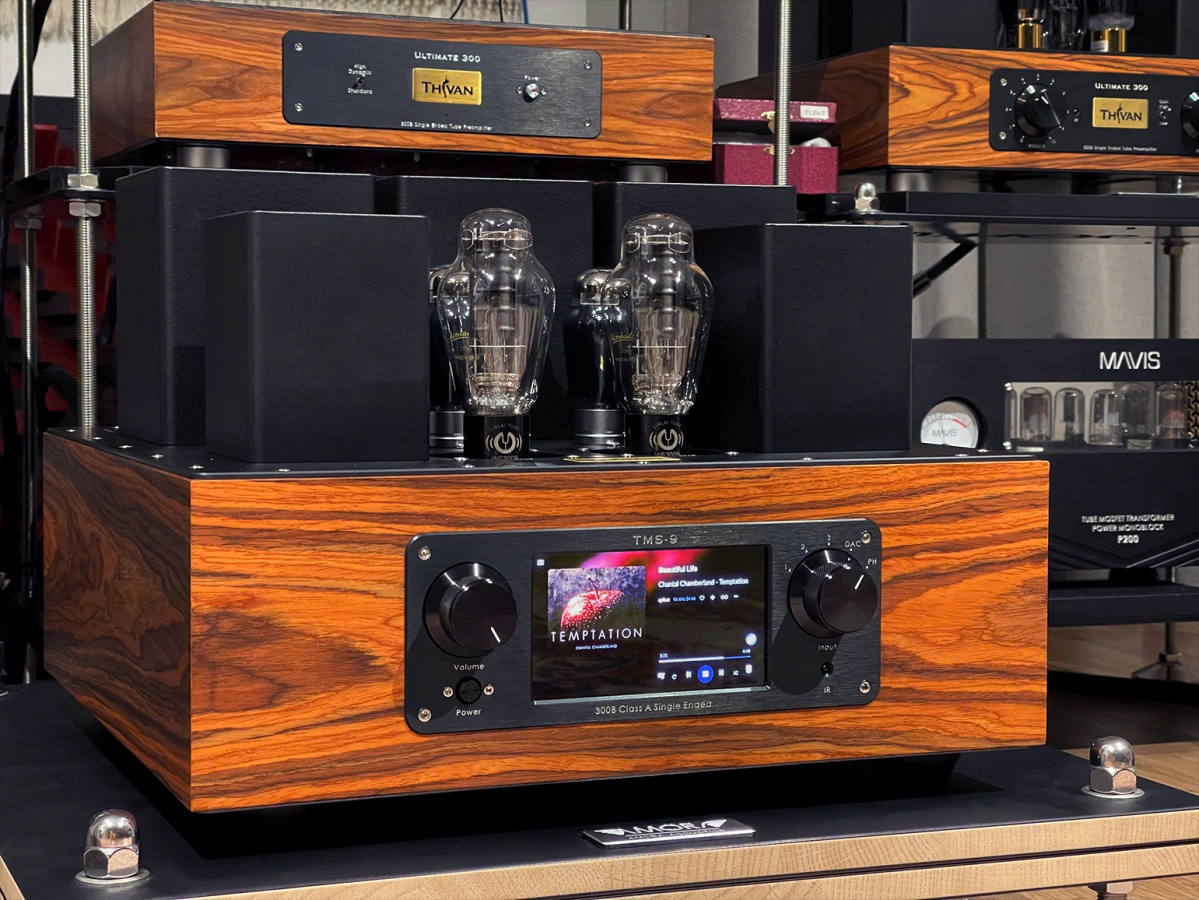

First launched in 2023, the TMS9 became the world’s first 300B tube preamplifier to integrate music server and streaming functionality. Its unique feature is that the entire decoding process passes through the amplification stage using 300B tubes and a Single-Ended Class A Zero Feedback design. Combined with an output transformer optimized for 300B tubes, the TMS9 delivers an “extremely analog” digital sound quality with impressive dynamics while preserving audio detail. With the expressive sound of 300B tubes, the audio is reproduced with emotion and subtlety!
In addition to its two main functions as a tube preamplifier and music server/streamer, the TMS9 Premium version integrates an MM-MC Phono and Headphone Amplifier, truly making the TMS9 Premium the “heart of the audio system”!
A 4-in-1 convergence for an ultimate music experience!

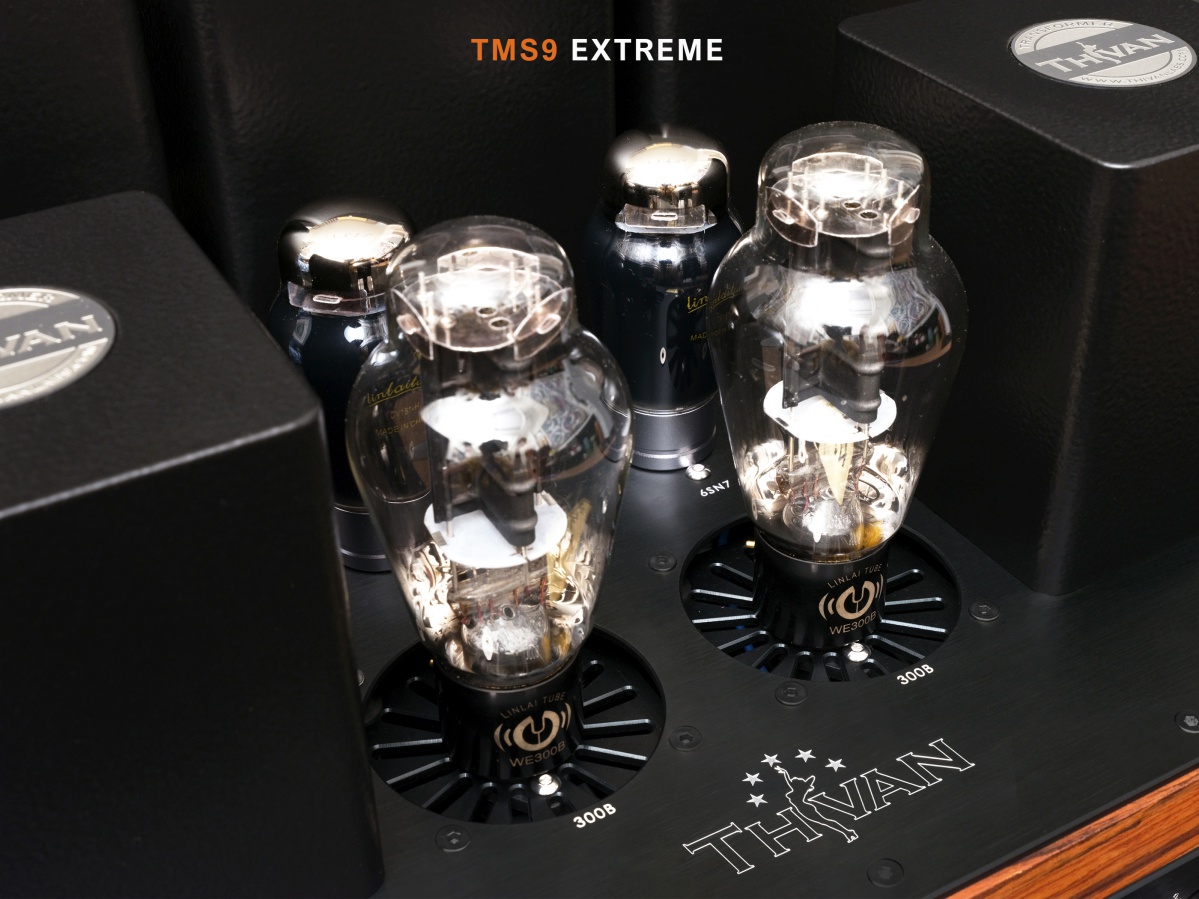

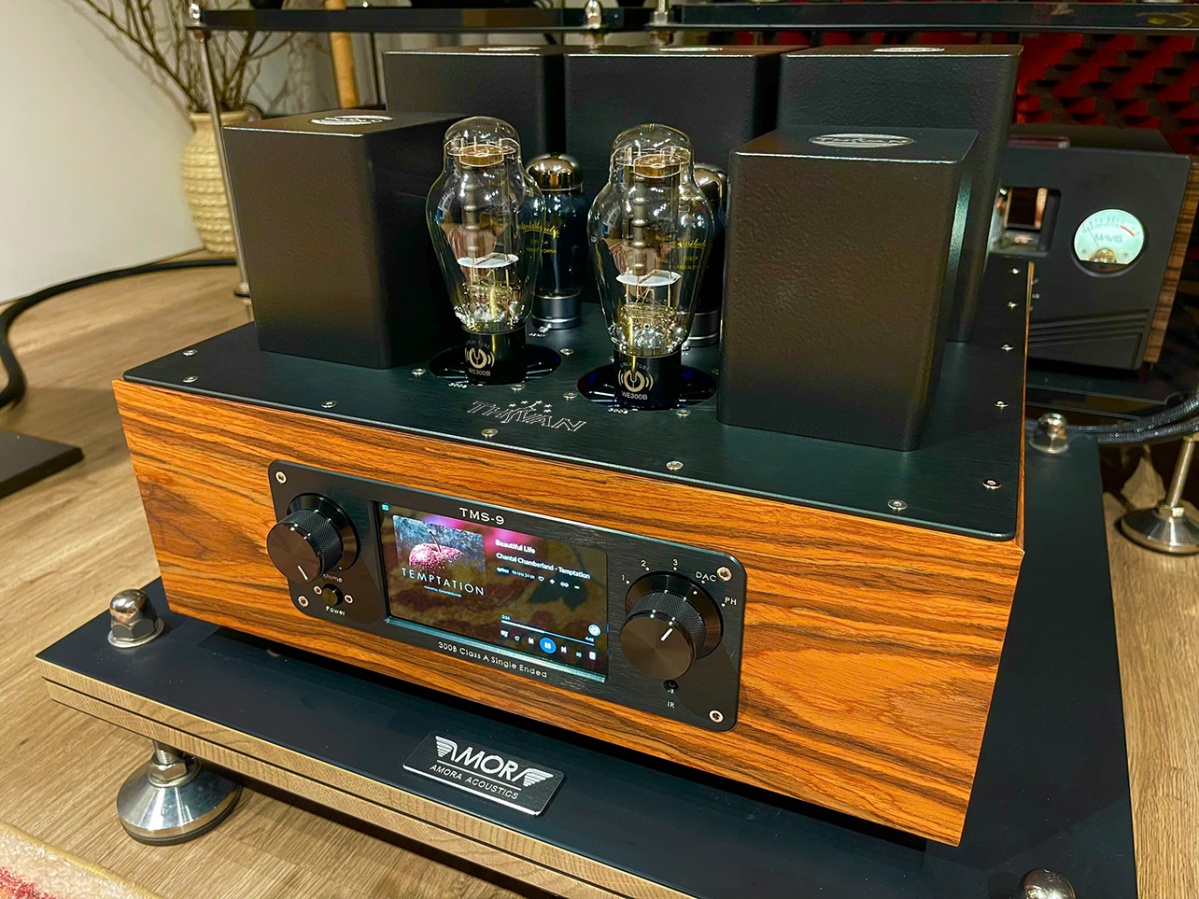

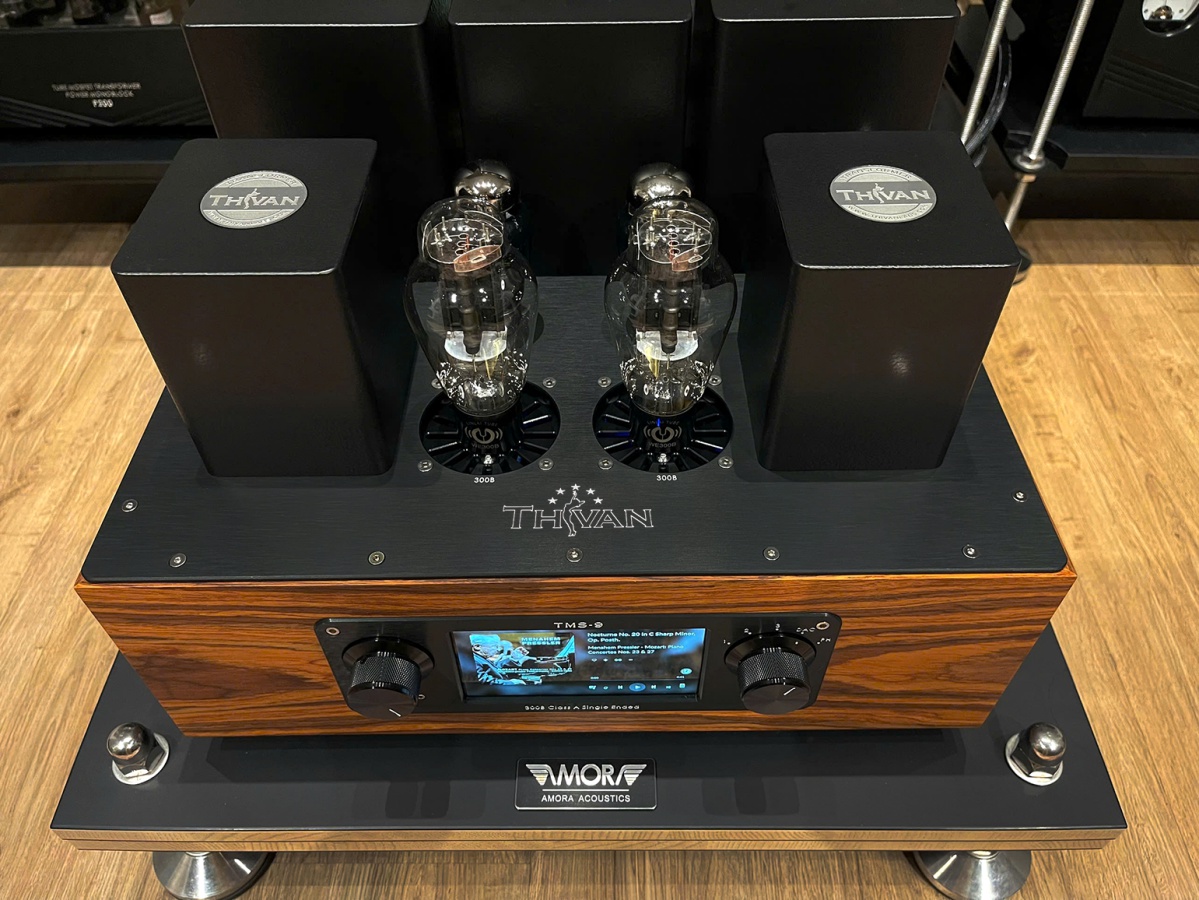

Inheriting all the technical superiority of the first TMS9 Premium version, the TMS9 Extreme is upgraded with the latest output transformer technology, boasting impressively low noise levels. The 300B Single-Ended Class A Zero Feedback circuit design is refined to enhance preamplification and increase the analog quality of streaming audio. Simultaneously, the anti-vibration isolation base technology used for the 300B tubes contributes to an exceptionally quiet background, resulting in music that is prominent, refined, and highly detailed.

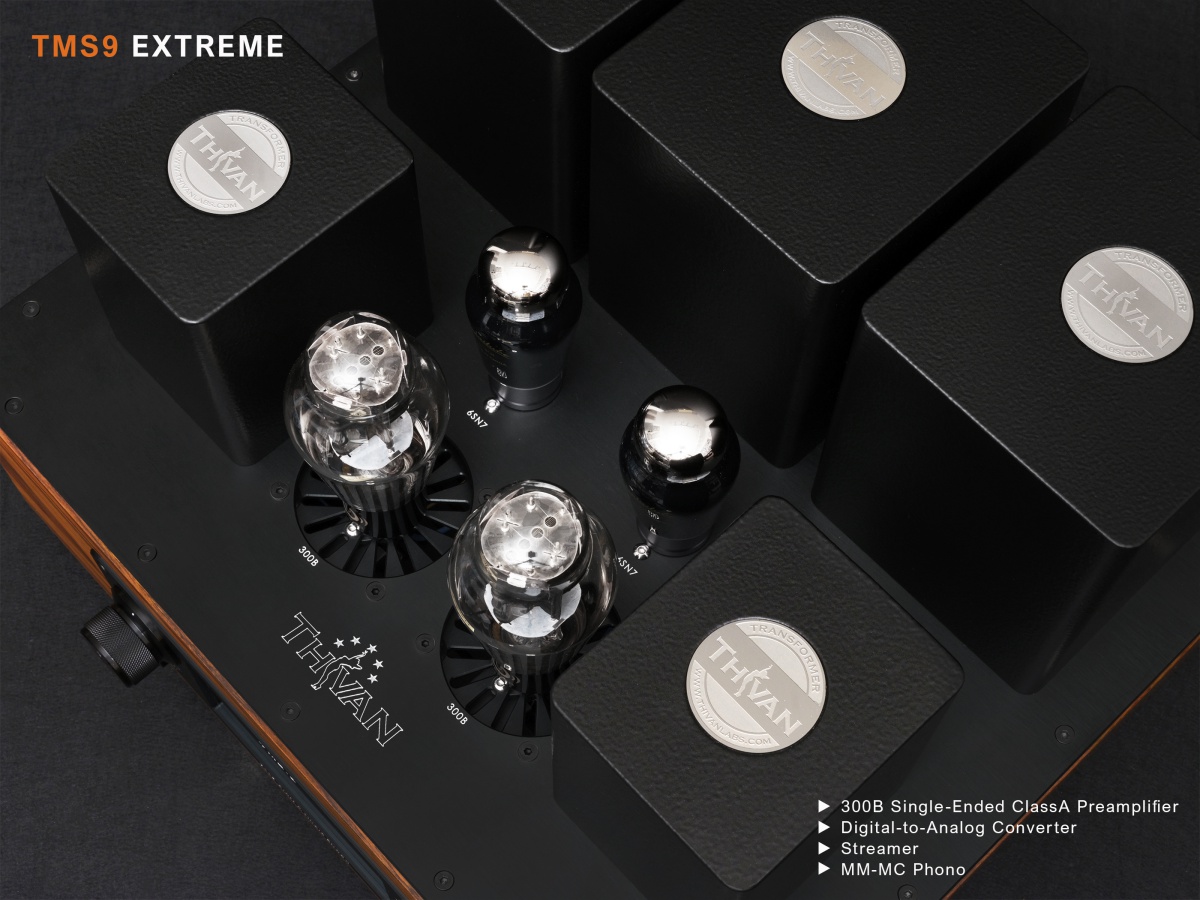

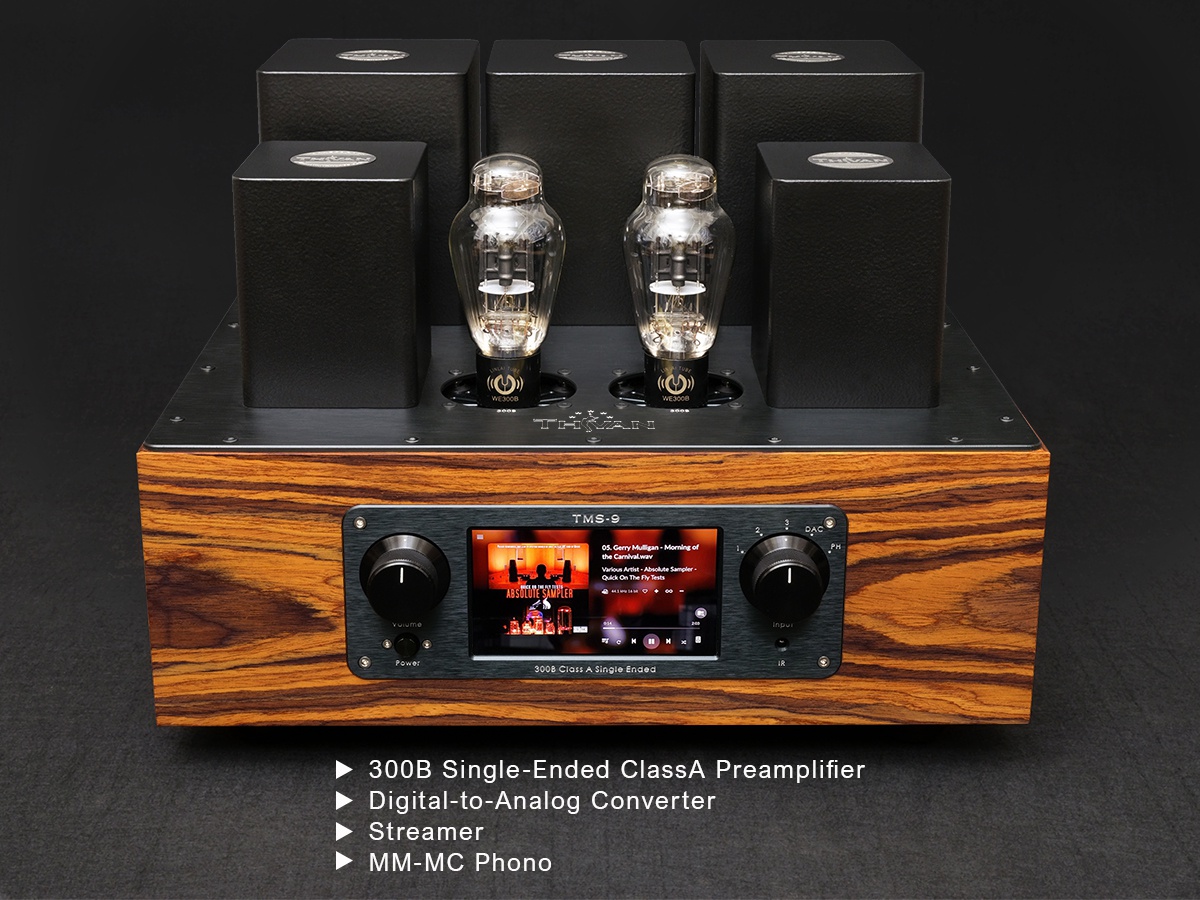

The integrated features of the TMS9 Extreme have also been changed to better suit the essential needs of audiophiles regarding music sources in a high-end audio system. Accordingly, the device will operate with the following four main functions:
– 300B single-ended tube preamplifier
– Digital-to-analog converter
– Streamer
– MM-MC phono input
