| Inputs (7) | 3 sets RCA line input |
| 1 sets Balance XLR line input | |
| 1 sets RCA MM RIAA Phono | |
| 1 sets RCA MC Phono | |
| 1 Optical Phono (DS Optical Cartridge) | |
| Outputs (2) | 1 sets RCA |
| 1 sets balanced XLR (EIA “pin 2 hot” studio standard) | |
| Vacuum tubes | |
| – Line Preamplifier | 2 x 300B Single Ended with Special Output Transformers |
| 2 x 6SN7 | |
| – MM / MC / Optical Phono | 2 x 12AX7 ; 1 x 12AU7 |
| Frequency response | 6Hz – 50kHz (+/-3dB) |
| HUM Noise | < 0.2mV |
| Gain | |
| – Line Preamplifier | Standard / High : +8dB / +12 dB (Switchable) |
| – MM Phono | 48dB |
| – MC (Stepup transformer) | 68dB |
| Sound | High Dynamic / Standard switch |
| Output | |
| – Max Output | > 18Vp-p |
| – Recommended Output Load | > 50 Ohms |
| Input Impedance | |
| – Line Preamplifier | 100k |
| – MM Phono | 47k |
| – MC Phono | 22 – 47 – 100 – 220 – 470 Ohms |
| Power Requirements | 230V (possible to set 100 / 110 / 117 / 240V / 50-60Hz by different markets) |
| Power Consumption | 95W |
| External power supply | Yes, detachable umbilical cables |
| Dimensions (W x D x H) | |
| – Amplification module | 45 x 40 x 29 (cm) |
| – Power Supply module | 45 x 40 x 15 (cm) |
| Weight (kg) | 24kgs + 18kgs |
| Remote control | Included |
ULTIMATE 300 – 300B Single-Ended Tube Preamplifier Optical & MM-MC Phono
SPECIFICATIONS
INTRODUCTION & FEATURE
ULTIMATE 300 is the top-notch tube preamp & Phono preamp in ThivanLabs’ tube preamp product line. With a look of ”ThivanLabs identity”, the ULTIMATE 300 has two color versions, Silver and Black, for users to choose according to their preferences and sound system.
1. The pinnacle of technical design
One of the most unique points in the design solution of ULTIMATE 300 to achieve the highest musicality is the use of 300B tubes for the main amplifier stage, designed according to the single-ended Class A – Zero Feedback circuit, combined with transformer output technology developed by ThivanLabs specifically optimized for 300B tubes. With this special design, the sound is reproduced “super dynamic and detailed”, “natural, emotional sound” and “an unlimited sound stage extent”.
The power supply module of ULTIMATE 300 is also one of the unique components of the device. The outstanding advantage of the power supply module of the ULTIMATE 300 is the use of many Chokes to purify the power source for the amplifier circuit. These chokes are also specially designed and manufactured, tested extremely rigorously to achieve the best noise filtering ability for the power section. The use of many specialized Chokes for the ULTIMATE 300 really brings an extremely fast, powerful source of energy, while completely preserving the details and musicality, thanks to which the dynamics are extremely high and fast. This is also the outstanding advantage of the ULTIMATE 300 compared to Preamp devices that only use filter capacitors for the power section.
Using PIO oil capacitors (Oil capacitors) in the power supply circuit for the amplifier stage.
Users can freely mix and match tubes to explore different sound colors, especially with the 300B and 6SN7 tubes (each pair should be a matched pair to get the most balanced sound). The tubes are designed to operate completely Auto Bias, so users can completely rest assured to mix and match a variety of different tube brands.
Technical Highlights of Ultimate 300
*** Line Preamp
– 300B uses Transformer output, designed with very low output impedance, so the ability to supply large and fast current, thanks to which the sound can easily achieve very high dynamics.
– The entire signal circuit is designed with the shortest transmission path and Point-to-point connection, helping to preserve the optimal signal. Therefore, the smallest details of the sound to be amplified in a subtle and extremely detailed way.
*** A separated Power Supply
– The power supply is separated into a separate module from the amplifier module to completely eliminate noise in the most optimal way.
– The Power Supply module is specially designed and tested, using a lot of choke coils (L) and Oil capacitors (PIO) to bring a clean, endlessly deep sound background.
– The connection cable is specially tested to optimize extremely durable and stable transmission between the two modules – the main amplifier module and the power supply module.
| *** True Balanced XLR Output
The Ultimate 300 is also a Preamp with a True Balanced output for optimal noise reduction. Benefits: – Reduced noise and interference: This is especially important in environments with a lot of electrical noise or when using 2m – 3m -5m – 10m long XLR cables etc. – Improved signal integrity: By minimizing noise, balanced connections ensure a cleaner and more accurate audio signal. – Longer cables: The ability to maintain signal quality over longer distances makes the True Balanced connections ideal for systems in large rooms, arranging LP, CD sources etc. close to the listening position and far from the Amplifier, Speakers. In that case, it is necessary to use a 6-12 meter XLR cable or longer. |
2. Unique features
– Can use All Types of Cartridges. The Ultimate 300 is integrated a Full of Phono features to meet all types of cartridges available on the market, especially the DS Optical Cartridge.
+ Tube Phono feature for DS Optical Cartridge.
+ Tube Phono MM – MC feature (MC with Step-up Transformer)
– Phono control section is located on the top of the device for easy use
– Equipped with remote control

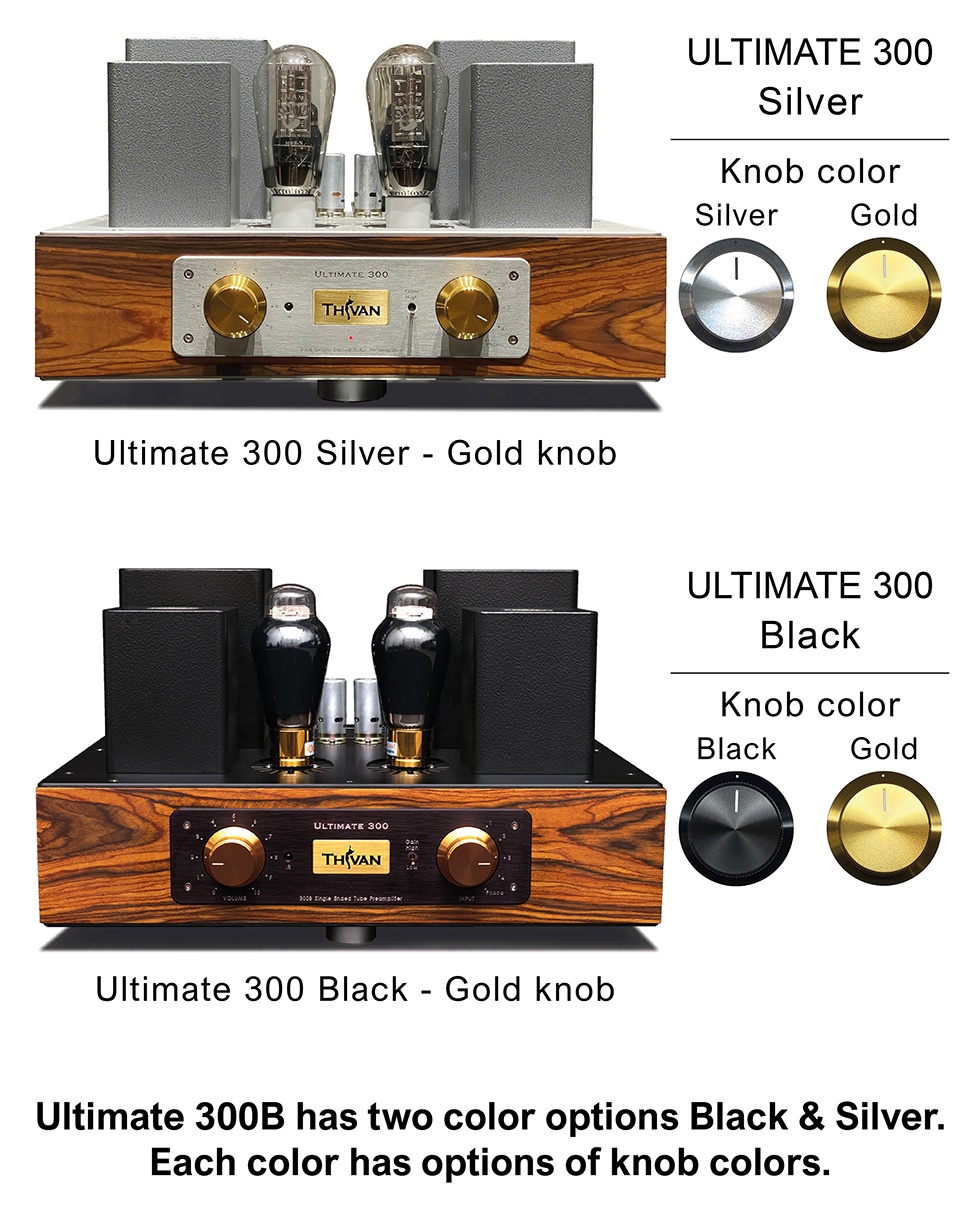

3. Optional selection and customization
– Silver / Black remote corresponding to two Silver / Black machine versions
– Optional Black, Gold or Brass color knob:
+ Silver version: Gold color knob
+ Black version: Black knob (default with the product) or Gold or Brass color knobs (optional with extra charge)
– Straight cable plug (default with the product) or curved plug (optional with extra charge)
For all optional selections, please contact our distributors to ask for availability and possibility in your country.
